EVA interlayer film

Willing® EVA interlayer summary

Willing® EVA film Introduction

Jiaxing Willing Lamiglass Material GmbH (W.M.C) has rich experiences of 8 years to produce EVA film for laminated glass both for industrial applications of exterior and interior. The factory has 5,200 square meters and own two EVA automatic production line, the product with superior quality for glass industry and processing.

We produced EVA film for applications of glass laminating processing and solar panel, mainly for architectural laminated glass which has more excellent performances like safety, Security, acoustic insulation, energy saving, chromatics and creations. Aesthetics can be fully applied in field of architecture.

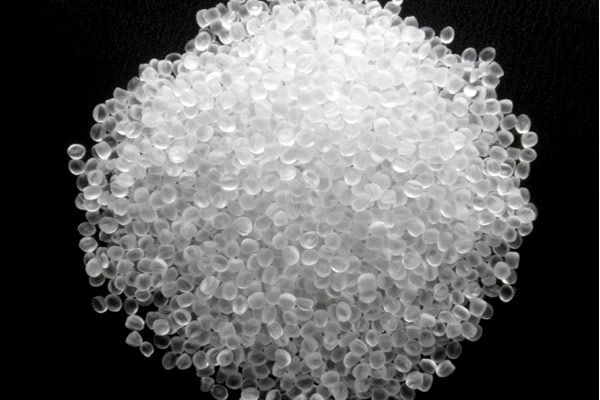

ArchitexTM EVA film - Raw Material

EEthylene vinyl acetate (also known as EVA) is the copolymer of ethylene and vinyl acetate. The weight percent vinyl acetate usually varies from 10% to 40%, with the remainder being ethylene.

It is a polymer that approaches elastomeric materials in softness and flexibility, yet can be processed like otherthermoplastics. The material has good clarity and gloss,

low-temperature toughness, stress-crack resistance, hot-meltadhesive waterproof properties, and resistance to UV radiation. EVA has a distinctive "vinegar" odor and is competitive with rubber and vinyl products in many electrical applications.

Willing® EVA Specification

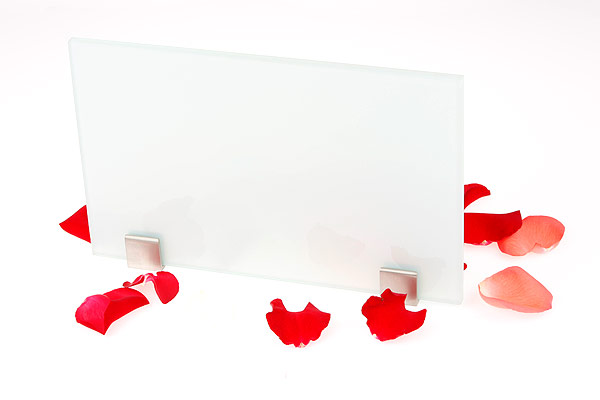

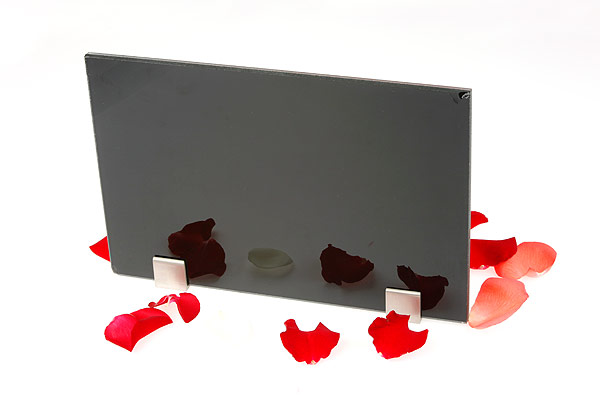

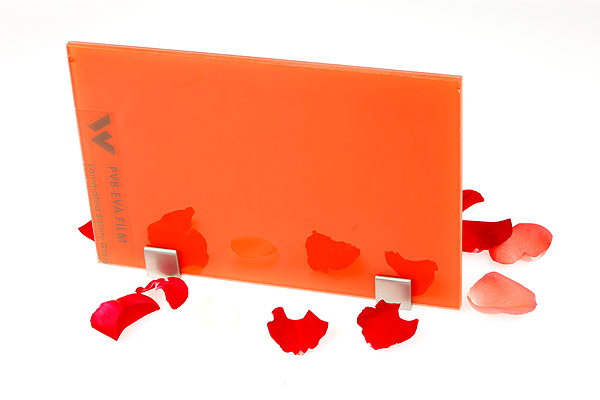

  Universal/High Transparency Colored /Translucent/ Opaque Sandblasted//Frosted Acrylic/PET/PETG/PVC/PC/ Fabrics/Silk/metal/plywood Solar panel
Stardard Thickness 0.25 mm 0.38 mm 0.50 mm 0.76 mm 0.38 mm 0.38 mm 0.25 mm 0.30 mm 0.35 mm 0.40 mm 0.45 mm 0.50 mm
Stardard length/Roll 150 m 100 m 80 m 50 m 50 / 100 m 50 / 100 m 100 m
Available width 1670mm; 1730mm; 1830mm; 1850mm; 2000mm; 2250mm; 2300mm; 2400mm. 1000mm
0.25mm ( Less than50W); 30mm(50-100W); 35mm(100-150W)
40mm(150-200W); 45mm(200-250W); 50mm (300W)
Minimal quantities order is 3 rolls but color should be in color chart.
Customized specification and colors need to consult with us before place order.

Willing® EVA Film Applications

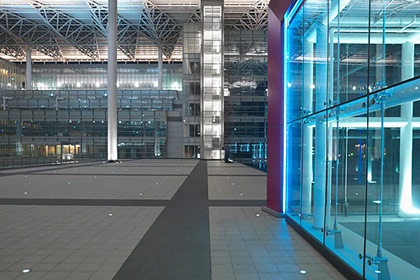

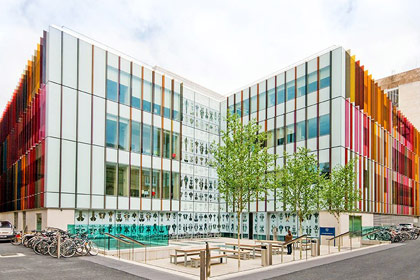

Exterior applications

Exterior applications

Interior applications

Interior applications

Multilayer lamination

Multilayer lamination

Willing® EVA Film Technologies

The tower type double rotor sub mixing tech

Increasing polymer resin stability, improving EVA performances and its physical properties.

Nanotechnology

Making polymer resin has many functional particles that can be mixed with auxiliary elements together, ensure stability quality of the EVA film.

Adhesion Adjustment

It can operate in different climate and conditions, EVA began to play its excellent bonding until heated to 80°C.

Willing® EVA Film advantages

WMC GLASS is at the forefront of continuous innovations in the development and manufacture of all processes productive thanks to technology that gives us the optimization of the resources of our customers. Working for companies that give a absolute priority to R & D and are always interested in new technologies production.

WMC GLASS has devised to create infinite kinds EVA film for different applications such as construction projects,EVA film laminated glass can be installed interior and exterior places that its laminated glass own high transparency and brightness; Colored EVA film almost used for interior decoration of window, kitchen, furniture, entertainment venues, also colored transparent/translucent and opaque EVA film for private space like office partition, meeting room, hallway and shower room; for special lamination with other material insertions can choose our functional EVA film.

High quality EVA interlayer is processing in laminating glass with high transmittance and durable adhesion with different laminates. Different application request its temperature depends on insertion material and specific operation. Generally speaking Willing company can provide suitable EVA film with different melting points can be bond with different material in laminating processing. Universal EVA film transmittance can reached over than 90% with clear float glass after laminating, if you need a higher rate of transmittance please use Willing company high/Ultra transparency EVA film which can be up to 92% transmittance rate; Willing®EVA Film has good bonding with many kinds material not only glass but also Acrylic, PET, PETG, PVC, PC, Fabrics, Silk, metal,plywood, solar panel and specimens, are undergoing change and deformation at high temperatures, Willing ®EVA film allows working at low temperatures such so that the laminated glass inserts did not suffer any alteration. Deco-Laminated glass with Willing®EVA film will be your private custom interior items, and its an really exclusive artwork.

Today, glass decoration has become an integral part of interior decoration, Willing®EVA film owns superior quality with glass as perfect interpretation of its excellent safety and color. If glass was shattered by external accidents, broken glass like a spiderweb to be bonded on EVA film that can avoid injury. The color film is unparalleled, color scheme gives the aesthetic visual experience.Willing®EVA film can be used for architectural laminated glass including exterior, interior, decorative safety glass applications.

  • ArchitecxTM is effective for reducing shattering when broken.
  • ArchitecxTM improves penetration resistance.
  • ArchitecxTM reduces damage levels from natural disasters such as earthquakes, hurricanes and explosions.
  • ArchitecxTM incorporated with PET film shows significant improvement in Anti- burglary properties.
  • ArchitecxTM owns high-performance safety function properties, it is reliable and produces long-time weather resistance.
  • ArchitecxTM has Significantly higher Adhesion with Glass and Polycarbonate.
  • ArchitecxTM displays less hydrophilicity, is widely used for outdoor open-edge applications.
  • ArchitecxTM can be combined with other materials to improve the properties and also for decorative purposes.
  • ArchitecxTM required working conditions can be on open space without humidity control.
  • ArchitecxTM recovery of bubbles.
  • ArchitecxTM can be in used in a wide range of fields.

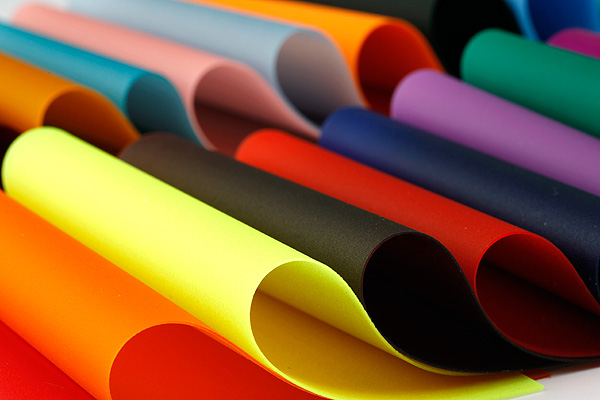

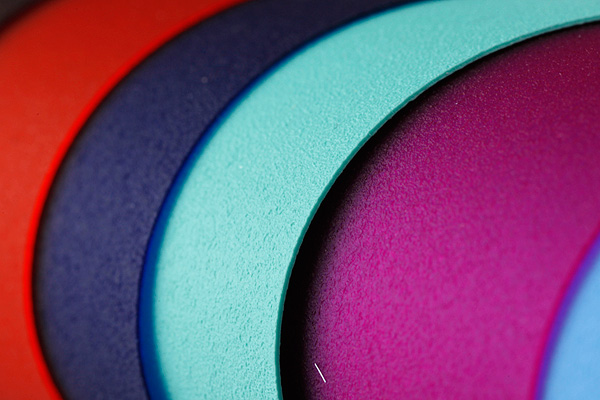

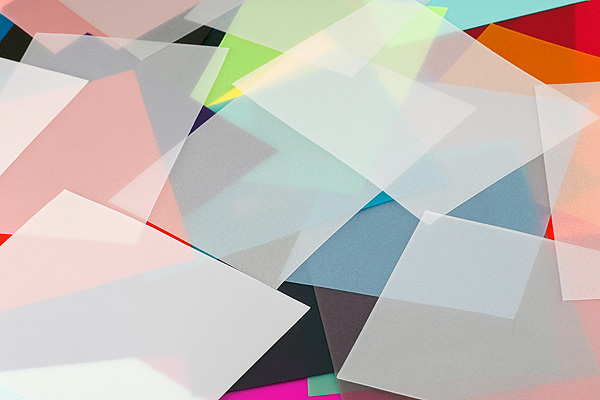

  • ArchitecxTM color EVA film is a big family including basic color tone and can be mixed more than 100 different color to chose.
  • ArchitecxTM color EVA film can be combined with other materials to improve the properties and also for decorative purposes.

Willing® EVA technical parameters

ITEMS UNIT Transparency Colored
Thickness mm ± 5% ± 5%
Width mm + 3~5%
Length/roll m 100/50
Color   Universal & High transparency All Colors
Glass adhesion at 80°C N/cm 18 35
Glass adhesion at 120~135°C N/cm 18 35
PET adhesion N/cm 35 14
Temperature adhesion ºC 100100
Temperature fluidity ºC 8080
Light Transparence % 80°C= 87.5%
120-140°C = 91.6 %
UV Flitration % ≥98
Haze % 0.6
Humidity Resistance 50°C,95%RH,400hrs Qualified
Water Absorption 23ºC, 24 hours % 0.1
Breaking Tenacity kg/cm2 290
Tensile elongation % 2340
Anti aging- Standard UV radiation test Outdoor 120 days Qualified

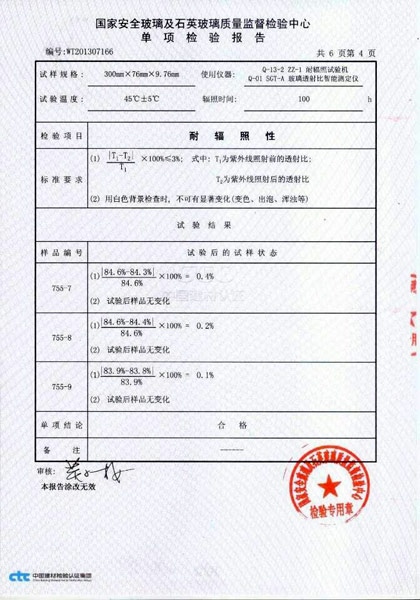

Anti aging- UV radiation test for 200 hours 200hr △YI Qualified

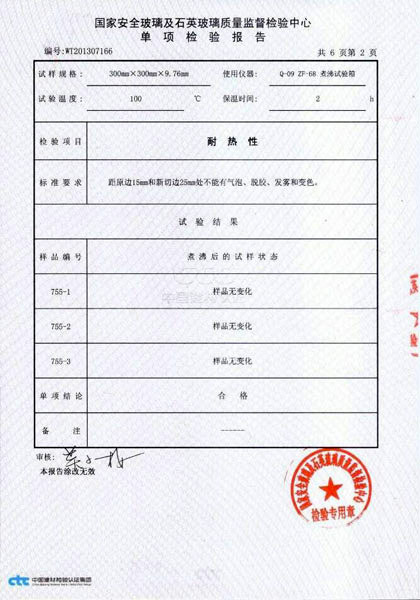

Boiling test 100 º C, 2 hours Qualified
Freezing resistance -40 ºc, 2 hours Qualified
Resistance to 100°C water 3 months Qualified
Resistance to humidity 50ºc, 95% RH, 2 weeks Qualified

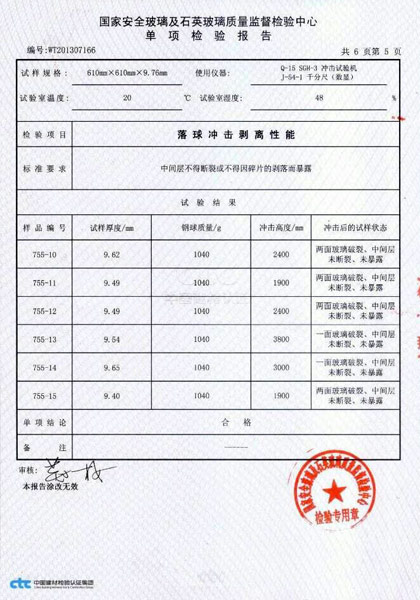

Impact -Ball falling 4.11 kgs to 3/6/9 height 3 impact   Qualified
Pendulum test   Qualified
Deviation Color Tolerance % - -10
LABORATORY DATA 80ºC 120min
130ºC 50min
Proof of artificial UV aging
temperature within 50ºC		 Temperature 50ºC
Humidity 65%
Radio 1w/m2
Time 2500 hours
Result=Qualified
Test resistance to high temperature
and low temperature cycle		 Temperature 80ºC 40ºC
Cycle time 4 hours
Cycle number 50 times
Result=Qualified
Constant temperatur
and humidity aging test		 Temperature 50ºC
Humidity 97%
Time 400 hrs
Result=Qualified

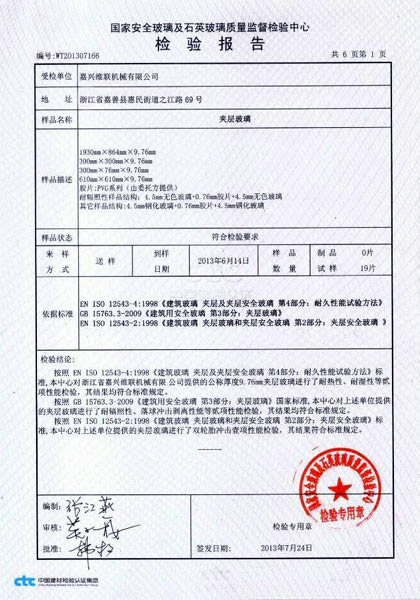

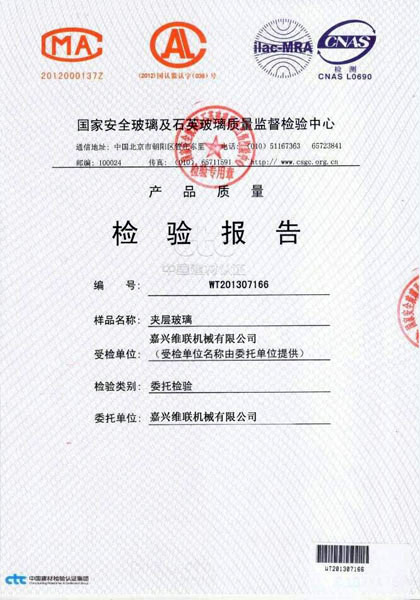

Willing® EVA Film certificates

  • GB/T 20220-2006 Plastic film or sheets - average thickness of layer and roll testing.
  • GB/T 1040.1-2006/ISO 527-1:1993 Plastic stretching performance Part 1: General Rule.
  • GB/T 1040.3-2006/ISO 527-3:1995 Plastic stretching performance Part 3: Testing condition of EVA sheet or film.
  • GB/T 1034-2008 Plastic Hygroscopicity.
  • GB/T 2680-1994 Architectural Glass Visible light transmittance; Solar transmittance; UV and windows testings.
  • GB/T 2410-2008 Transmittance and Haze testings.
  • GB/T 2828 Sampling inspection.
  • HG/T 3862－2006 Plastic Yellowish testings.
  • EN12150-2-2004 Glass in building - Thermally toughened soda lime silicate safety.
  • EN12600-2002 Glass in building - Pendulum test - Impact test method and classification for flat glass.
  • EN13501:2002 Fire classification of construction products and building elements.
  • EN356-1999 Security Glazing, testing and classification of resistance against manual attacks.
  • EN13541:2000 Construction materials, Explosions, Hazard prevention in buildings, High-pressure tests, Pressure impulse tests, Performance, Classification systems, Health and safety requirements.

***We are confirming above certificates compliance required by the Chinese plastics standard, architectural glass glazing and European Community***

Willing® EVA film/Roll Package & Storage

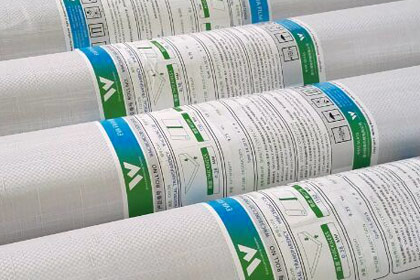

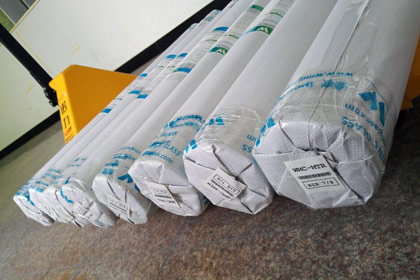

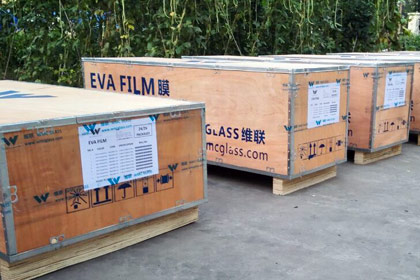

Package

Weight and Package of Willing EVA film roll

Contents of label and sticker

Willing® EVA film in laminated glass processing

EVA interlayer film in laminated glass processing

  • Laminating glass(LG), one layer(e.g 0.38mm EVA ) film with the float glass sheets.
  • Take LG into silicone bag to pre-vacuum for 5-10mins.
  • Put LG into the furnace (EVA laminating machine), start to heat up to 120℃ (120℃ means actual temperature of glass surface).
  • Keeping temperature (120℃) for 30mins (5mm glass+0.38 film+5mm glass), theoretically, total thickness increase 5mm, heating time should longer than 8 min accordingly.
  • Cooling down to 60℃, stop vacuum.
  • Open the furnace, take out the LG.

Kindly Attentio

  • Pre-vacuum and heating holding time needed to fine adjust according to glass thickness, operating room temperature.
  • From enter into furnace to cool down to 60℃ that during above processing steps can not stop vacuum.
  • Holding timing should be start at 120℃

    • Example

kindly Reminder

  • Laminating Operation Guide only for laminating with WMC GLASS EVA film.
  • Only Ultra Clear (WMC-UTC series) temperature is higher 20°C than universal clear and all colors EVA film, specially adjust initial processing temperature in WMC-UTC series.

    • Operation Guide
