With the development of human society, the human has higher requirements and like to enjoy better life, especially for housing environment, if that please let us come to realize it. For us, the building is an art. However, we give the building a new life and poetic to standing in everywhere of the world. We combine modern architectural knowledge to build a modern residence with advantages of safe, secure, transparent, sound insulation, energy-saving, UV protection. The houses be decorated by glass and aesthetics be achieved by glass, and PVB interlayer that we produced just given a new life and manifestations, let us work together to create infinite advantages PVB interlayer in glass.
ArchitexTM PVB interlayer are valued in architectural applications for the safety, security, acoustic and solar benefits provided. From hurricanes to bomb blasts, ArchitexTM PVB interlayer provides safety and security from shattered glass by holding the glass to the interlayer on impact.
WILLING® MotticaTM offers PVB film for the glazing of automobiles and other means of transport. Windscreens and side windows manufactured with WILLING® MotticaTM exhibit exceptional standards of safety, long-term stability, visual appearance, and protection from noise and UV light.
| Physical Properties | Technical Value | Standard | Unit | ||
|---|---|---|---|---|---|
| Density | 1.07-1.08 (Willing PVB) | ASTM D792/EN ISO1183-1 | g/cm3 | ||
| Relative density | 1.478 (Willing PVB) | ASTM D542/EN ISO489 | g/cm3 | ||
| Tensile Strength (23℃) | 226 (Willing PVB) | ASTM D412/ISO 5327-3 | (kgf/cm2) | ||
| Breaking Elongation | >200 (Willing PVB) | ASTM D412/ISO 5327-3 | % | ||
| Specific heat (23℃) | 1980 (Willing PVB) | ASTM C351 | J/(kg × K) | ||
| Thermal conductivity | 0.20 (Willing PVB) | ASTM C177/EN 12939 | W/(m × K) | ||
| Fluidity | (110℃) | 0.44 (Willing PVB) | g/min | ||
| (150℃) | 16.3 (Willing PVB) | ||||
| Melting point | 150 (Willing PVB) | ℃ | |||
| Surface resistivity | 1st face 2nd face (Willing PVB) |
9×1013 2.6×1013 |
ASTM D412/IEC 60093 | Ω | |
| Moisture | 0.33-0.53 (Willing PVB) | % | |||
| Thickness | 15mil | 30mil | 45mil | 60mil |
| 0.38 mm | 0.76 mm | 1.14 | 1.52 | |
| Length | 450 m | 250 m | 150 m | 130 m |
| Maximal width | 3210mm | |||
Special requirements can be customized.
Greater width than 2440mm upon request
| Thickness | 30mil /0.76 mm |
| Length | 250 m |
| Maximal width | 1680 m |
| Width of top color shaded | 10% - 30% of total width |
WILLING® MotticaTM PVB interlayer specification (Min & Max Widths)
Shade tinted:
Maximum total width = 1680mm
Maximum standard shade width = 510mm overall
Maximum clear width = 1300mm
Minimum shade width = 75mm
Special requirements can be customized.
Greater width than 510mm upon special request

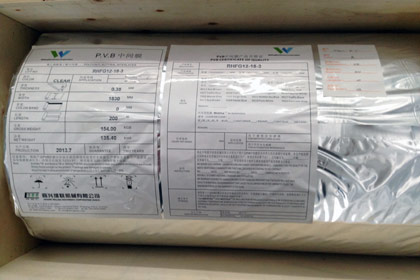

To prevent blocking and breaking, Willing®PVB sheet is supplied by interleaved such be separated with thin PE Film. One PVB Roll is packaged in single plywood case (horizontal) for widths above 1100mm ...
To prevent blocking and breaking, Willing®PVB sheet is supplied by interleaved such be separated with thin PE Film. One PVB Roll is packaged in single plywood case (horizontal) for widths above 1100mm ...

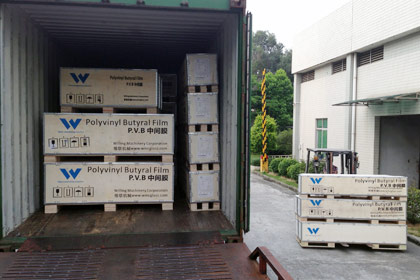

Willing®PVB film package is used plywood cases or strong carton barrels. When loading and transportation,it should avoid impact each other and keep package as well and no any damages ...
